Product Summary

The TL074CDR is a low-noise jfet-input operational amplifier. The TL074CDR is similar to the TL08x series, with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL07x series ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs of the TL071 (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip. The TL074CDR is characterized for operation from 0℃ to 70℃.

Parametrics

TL074CDR absolute maximum ratings: (1)Supply voltage: VCC+ 18 V; (2)VCC: 18 V; (3)Differential input voltage, VID: ±30 V; (4)Input voltage, VI: ±15 V; (5)Duration of output short circuit: Unlimited; (6)Operating virtual junction temperature, TJ: 150℃; (7)Case temperature for 60 seconds: FK package: 260℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: J, JG, or W package: 300℃; (9)Storage temperature range, Tstg: 65℃ to 150℃.

Features

TL074CDR features: (1)Low Power Consumption; (2)Wide Common-Mode and Differential Voltage Ranges; (3)Low Input Bias and Offset Currents; (4)Output Short-Circuit Protection; (5)Low Total Harmonic Distortion 0.003% Typ; (6)Low Noise Vn = 18 nV/√Hz Typ at f = 1 kHz; (7)High Input Impedance JFET Input Stage; (8)Internal Frequency Compensation; (9)Latch-Up-Free Operation; (10)High Slew Rate 13 V/μs Typ; (11)Common-Mode Input Voltage Range Includes VCC+.

Diagrams

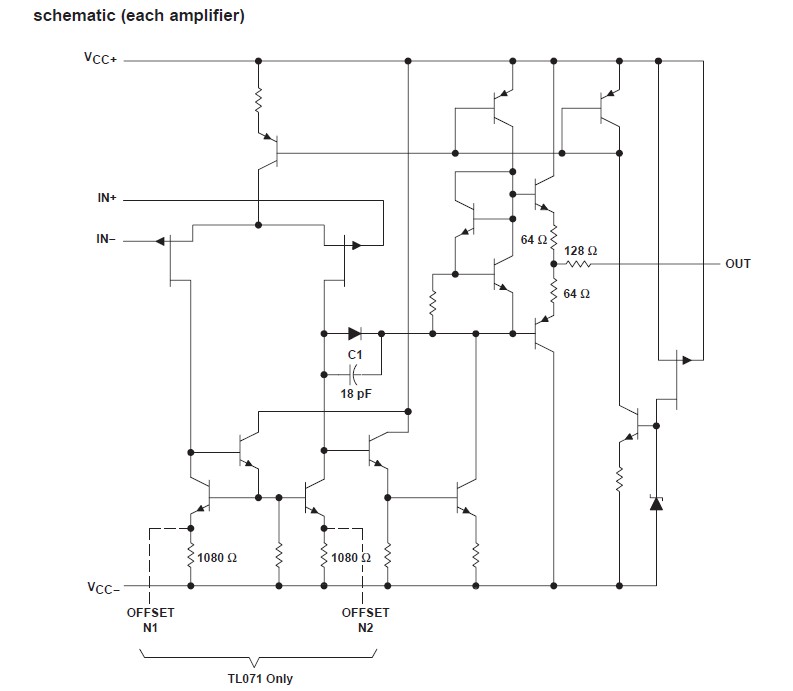

TL074CDR schematic diagram
