Product Summary

The STR736FV1T6 is the ARM7TDMI 32-bit MCU with flash, 3x Can, 4 Uarts, 20 timers, ADC, 12 comm. interfaces. The STR736FV1T6 has on-chip high-speed single voltage FLASH memory and high-speed RAM. The STR736FV1T6 has an embedded ARM core and is therefore compatible with all ARM tools and software.

Parametrics

STR736FV1T6 absolute maximum ratings: (1)External 5V Supply voltage: -0.3 to 6.0 V; (2)Reference ground for A/D converter: VSS V; (3)Reference voltage for A/D converter: -0.3 to VDD+0.3 V; (4)Input voltage on any pin: -0.3 to VDD+0.3; (5)Variations between different power pins: 0.3 mV; (6)Variations between all the different ground pins: 0.3 mV.

Features

STR736FV1T6 features: (1)Up to 256 Kbytes FLASH program memory; (2)4.5 - 5.5V application supply and I/Os ; (3)Realtime Clock for clock-calendar function; (4)Nested interrupt controller; (5)Up to 112 I/O ports; (6)4 DMA controllers with 4 channels each; (7)16-bit watchdog timer; (8)12 communications interfaces; (9)10-bit A/D converter; (10)Development tools support.

Diagrams

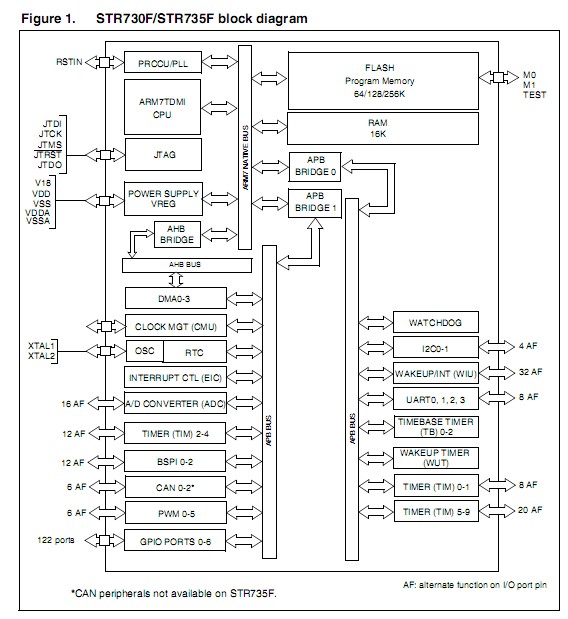

STR736FV1T6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

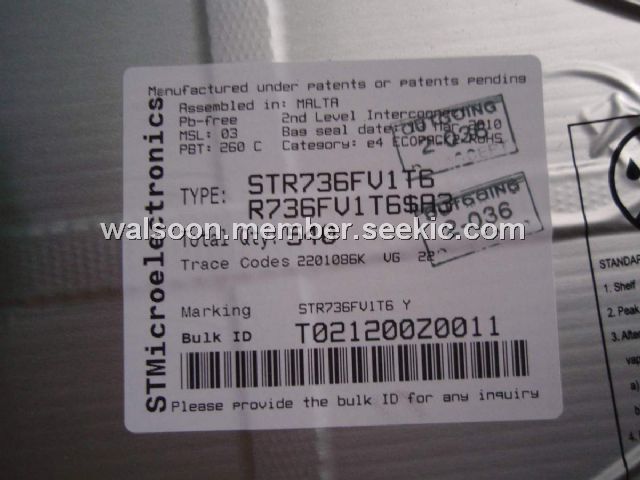

STR736FV1T6
STR736FV1T6

STMicroelectronics

ARM Microcontrollers (MCU) 32Bit MCU with Flash STR73xF ARM7TDMI

Data Sheet

0-352: $5.32
352-500: $5.01
500-1000: $4.55
