Product Summary
The STR710FZ2T6 is an ARM-powered 32-bit Microcontroller with embedded Flash and RAM. It combines the high performance ARM7TDMI CPU with an extensive range of peripheral functions and enhanced I/O capabilities. STR710FZ2T6 device has on-chip high-speed single voltage FLASH memory and high-speed RAM. STR710FZ2T6 device has high-speed RAM but no internal Flash. The STR710FZ2T6 has an embedded ARM core and is therefore compatible with all ARM tools and software.
Parametrics
STR710FZ2T6 absolute maximum ratings: (1)V33- VSS External 3.3V Supply voltage(including AVDD and V33IOPLL): -0.3 to 4.0V; (2)V18BKP - VSSBKP: -0.3 to 2.0V; (3)VIN Input voltage on true open drain pin (P0.10) 1): VSS-0.3 to +5.5; (4)Input voltage on any other pin: VSS-0.3 to V33+0.3; (5)|ΔV33x| Variations between different 3.3V power pins: 50V; (6)|ΔV18x| Variations between different 1.8V power pins: 25mV; (7)|VSSX - VSS| Variations between all the different ground pins: 50mV.
Features
STR710FZ2T6 features: (1)ARM7TDMI 32-bit RISC CPU; (2)59 MIPS @ 66 MHz from SRAM; (3)45 MIPS @ 50 MHz from Flash; (4)Up to 256Kbytes Flash program memory (10 kcycles endurance, 20 yrs retention @ 85℃); (5)16K bytes Flash data memory (100 kcycles endurance, 20 yrs retention@ 85℃); (6)Up to 64 Kbytes RAM; (7)External Memory Interface (EMI) for up to 4 banks of SRAM, Flash, ROM; (8)Multi-boot capability; (9)3.0 to 3.6V application supply and I/Os; (10)Internal 1.8V regulator for core supply; (11)Clock input from 0 to 16.5 MHz; (12)Embedded RTC oscillator running from external 32 kHz crystal; (13)Embedded PLL for CPU clock; (14)Realtime Clock for clock-calendar function; (15)5 power saving modes: SLOW, WAIT, LPWAIT, STOP and STANDBY modes.

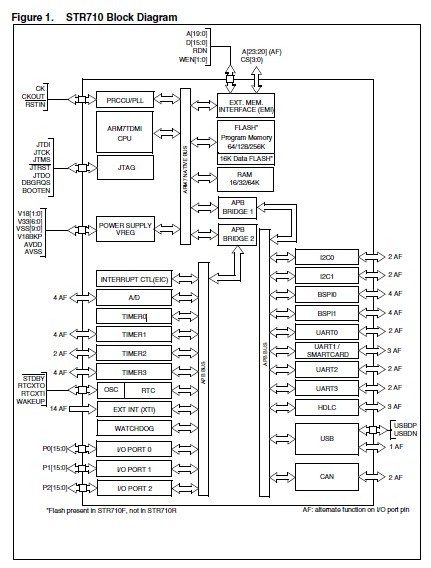

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STR710FZ2T6 |
STMicroelectronics |
ARM Microcontrollers (MCU) 256K Flash 64K RAM |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
STR7000 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
STR7001 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
STR710 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
STR710-EVAL |
STMicroelectronics |
Development Boards & Kits - ARM STR71X Eval Board |
Data Sheet |
|
|
||||||||||||
|
STR710F |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
STR710FZ1H6 |
STMicroelectronics |
ARM Microcontrollers (MCU) MCU 256KB STR71x ARM7TDMI |
Data Sheet |
|
|
||||||||||||
