Product Summary

The S3B-PH-SM4-TB is a 2.0 pitch/Disconnectable crimp style connector.

Parametrics

S3B-PH-SM4-TB specifications: (1)Current rating: 2A AC, DC; (2)Voltage rating: 100 V AC, DC; (3)Temperature rane: -25 to +85℃; (4)Contact resistance: Initial value/ 10 mΩ max.; (5)Insulation resistance: 1, 000 MΩ min.; (6)Withstanding voltage: 800V AC/minute.

Features

S3B-PH-SM4-TB features: (1)Reliable contact; (2)Fully shrouded header; (3)Printed circuit boad retention mechanism; (4)Surface mount model.

Diagrams

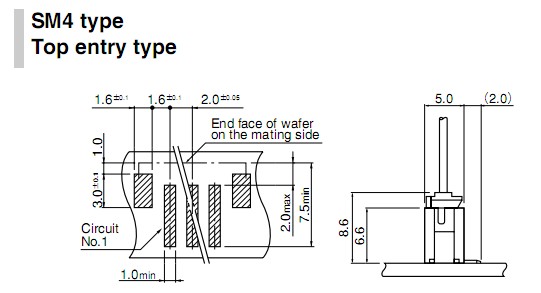

S3B-PH-SM4-TB dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S3B-PH-SM4-TB(LF)(SN)
S3B-PH-SM4-TB(LF)(SN)
JST Sales America Inc (VA)
CONN HEADER PH SIDE 3POS 2MM SMD
Data Sheet
1-10: $0.30
10-100: $0.25
100-500: $0.20
