Product Summary

The EVND2AA03B53 is a 6FE Square Trimmer Potentiometer.

Parametrics

EVND2AA03B53 Specifications: (1)Nominal Total Resistance: 1 kΩ to 1 MΩ; (2)Residual Resistance: 1 kΩ<R<2 kΩ: 60Ω max; (3)Rotation Angle: 210 °±20 °; (4)Rotation Torque: 2 mN·m to 25 mN·m; (5)Stopper Strength Surface: 75 mN·m, reverse side: 35 mN·m; (6)Operating Life: 100 cycles; (7)Resistance to Soldering Heat: 240 ℃ to 280 ℃: 5 s max., 280 ℃ to 300 ℃: 3 s max.; (8)Endurance under High Temperature: 70 ℃±3 ℃ After 250 hours +5 %, -15 %.

Features

EVND2AA03B53 features: (1)Top-adjust or side-adjust available; (2)Radial taping supported; (3)High reliability (dustproof construction).

Diagrams

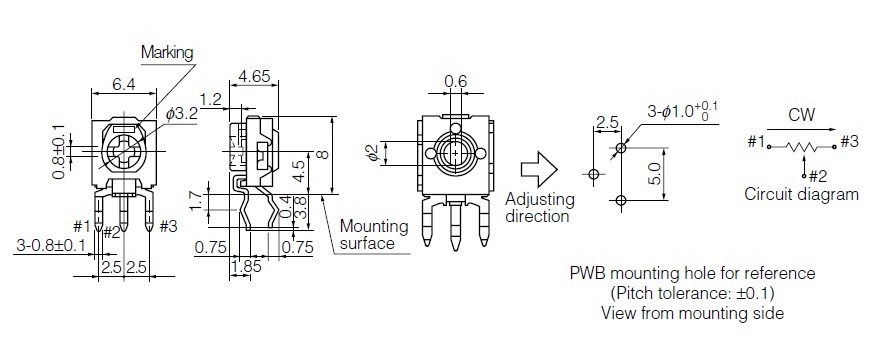

EVND2AA03B53 dimensions
