Product Summary
The 6417727F is a 32-Bit RISC Microcomputer.
Parametrics
6417727F absolute maximum ratings: (1)Power supply voltage (I/O): -0.3 to 4.2 V; (2)Power supply voltage: -0.3 to 2.5 V; (3)Input voltage (except port L): -0.3 to VccQ + 0.3 V; (4)Input voltage (port L) Vin: -0.3 to AVcc + 0.3 V; (5)Analog power-supply voltage AVcc: -0.3 to 4.6 V; (6)USB power-supply voltage AVcc_USB: -0.3 to 4.2 V; (7)Analog input voltage VAN: -0.3 to AVcc + 0.3 V; (8)Operating temperature Topr: -20 to 75 ℃; (9)Storage temperature Tstr: -55 to 125 ℃.
Features
6417727F features: (1)Original Renesas SuperH architecture; (2)Object code level compatible with SH-1, SH-2 and SH-3; (3)32-bit internal data bus; (4)General-register: Sixteen 32-bit general registers (eight 32-bit shadow registers); Eight 32-bit control registers; Four 32-bit system registers; (5)RISC-type instruction set-Instruction length: 16-bit fixed length to improve code efficiency; Load-store architecture; Delayed branch instructions; Instruction set based on C language; (6)Instruction execution time: one instruction/cycle for basic instructions; (7)Logical address space: 4 Gbytes; (8)Space identifier ASID: 8 bits, 256 logical address space; (9)Five-stage pipeline.

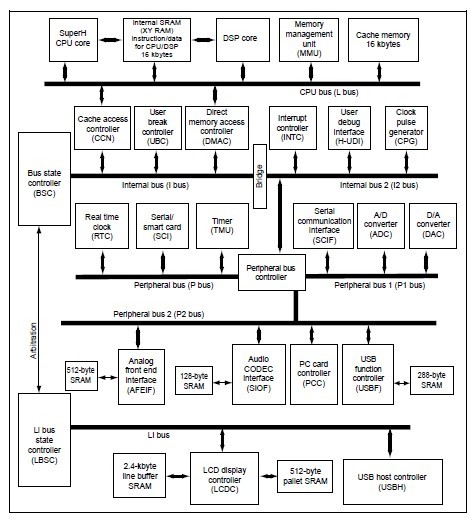

Diagrams
![]() |
