Product Summary

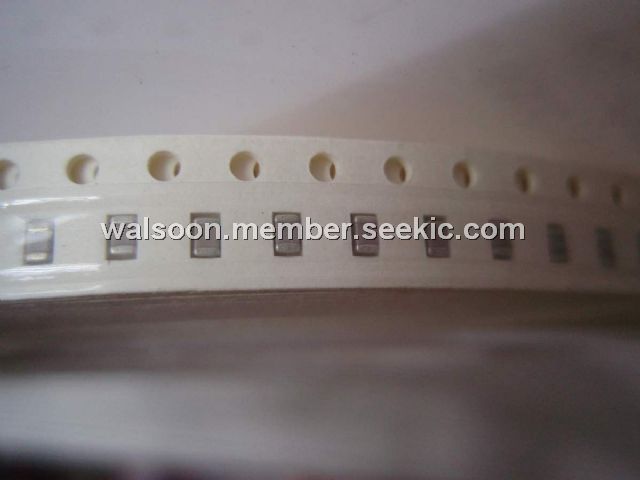

The 0805B104K500CT is a Ceramic multilayer capacitor.

Parametrics

0805B104K500CT absolute maximum ratings: (1)operating temperature range: -30℃ to 85℃; (2)temperature coefficient: + 22%-82% ΔC Max.; (3)dissipation factor: 5.0% max @ >25V rating; 7.0% max @ <25V rating; (4)insulation resistance, 25℃: > 10GΩ or >100ΩF; (5)dielectric withstanding voltage: < 200V, 250%; 250V, 150%; (6)aging rate: ~ 2.0% per decade; (7)test parameters: 1KHz, 0.5 +/- 0.2 VRMS, 25℃.

Diagrams

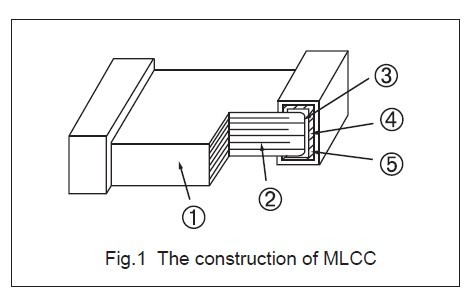

0805B104K500CT construction diagram
