Product Summary

The RZR020P01 is a 1.5V Drive Pch MOSFET.

Parametrics

RZR020P01 absolute maximum ratings: (1)Drain-source voltage: -12V; (2)Gate-source voltage: ±10V; (3)Drain current: ±2A; (4)Total power dissipation: 1.0W; (5)Channel temperature: 150℃; (6)Range of storage temperature: -55 to 150℃.

Features

RZR020P01 features: (1)Low on-resistance; (2)Built-in G-S Protection Diode; (3)Small and Surface Mount Package (TSMT3); (4)Low voltage drive (1.5V).

Diagrams

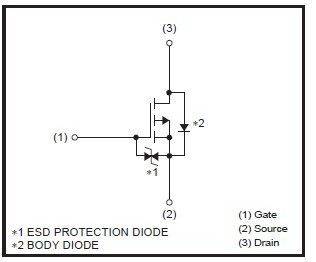

RZR020P01 inner circuit
