Product Summary

The MNR04M0ABJ220 is a 22 OHM chip resistor.

Parametrics

MNR04M0ABJ220 absolute maximum ratings: (1)Rated power: 0.063W (1 / 16W) at 70℃; (2)Rated voltage: 25 V; (3)Nominal resistance: See Table 1; (4)Operating temperature: -55 to 125 ℃; (5)Resistance: Max.50mΩ; (6)Rated current: 1A.

Features

MNR04M0ABJ220 features: (1)Extremely small and light; (2)High-density mounting; (3)Can be mounted on a wide variety of devices; (4)Convex electrodes; (5)ROHM resistors comply with the international standard ISO-9001.

Diagrams

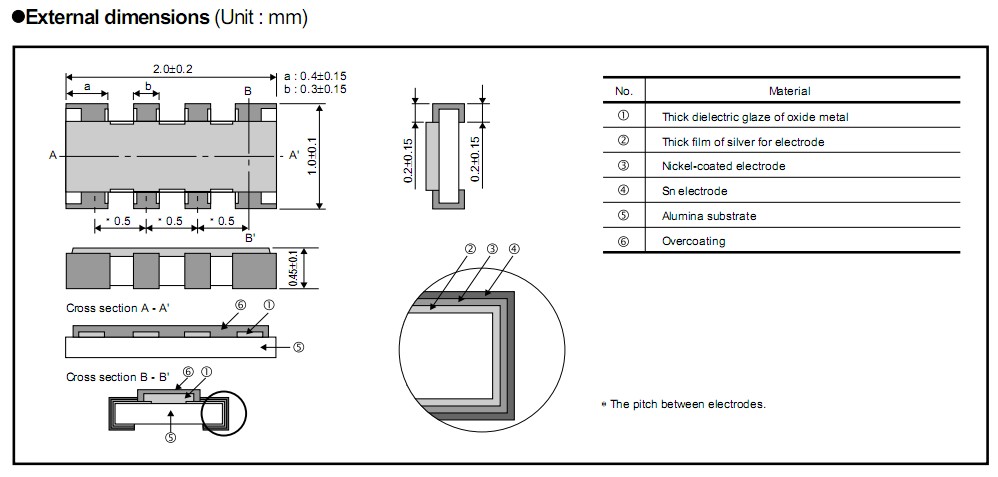

MNR04M0ABJ220 external dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MNR04M0ABJ220
MNR04M0ABJ220

RES ARRAY 22 OHM 4 RES 0804
Data Sheet
0-1: $0.16
1-10: $0.11
10-100: $0.05
100-250: $0.04
250-500: $0.03
500-1000: $0.02
1000-5000: $0.01
