Product Summary

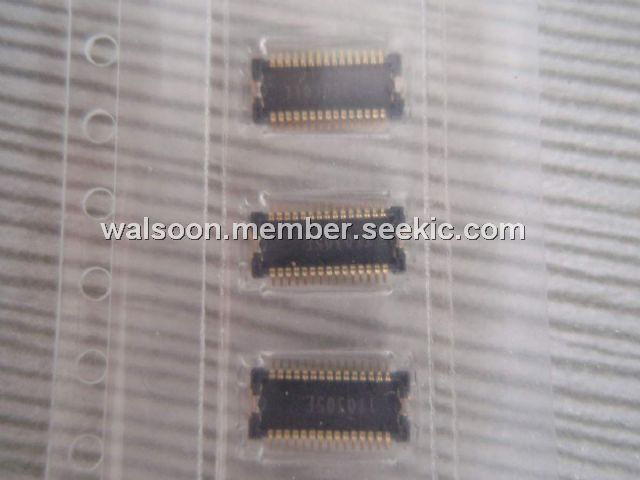

The AXK7L30227BG is a narrow-pitch connector for board-to-FPC connection.

Parametrics

AXK7L30227BG absolute maximum ratings: (1)Rated current: 0.3A/terminal (Max. 5 A at total terminals); (2)Rated voltage: 60V AC/DC; (3)Breakdown voltage: 150V AC for 1 min.; (4)Insulation resistance: Min. 1,000MΩ (Initial); (5)Contact resistance: Max. 90mΩ; (6)Ambient temperature: –55 to +85℃; (7)Storage temperature: –55 to +85℃ (Product only), –40 to +50℃ (Emboss packing).

Features

AXK7L30227BG features: (1)The lowest profile class among two-piece connectors in the world (Mated height: 0.9mm); (2)Strong resistance to adverse environments; (3)Utilizes construction for high contact reliability; (4)Improved mating strength between the socket and header; (5)Easy to design product circuits; (6)Connectors for inspection available.

Diagrams

AXK7L30227BG dimensions

AXK7
AXK7
