Product Summary

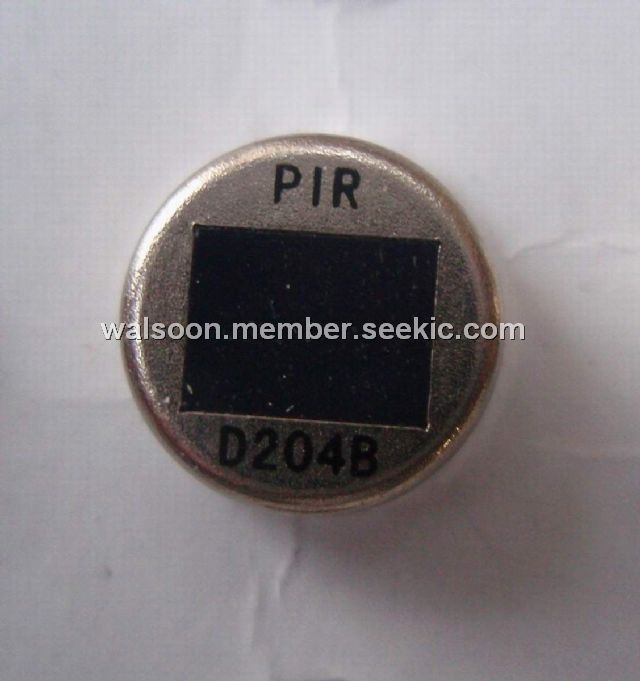

The D204B is a pyroelectric infrared sensor. It detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature. Dual compensated sensing elements are applied to suppress the interference resulting from temperature variation. As a result, the operating stability of the D204B is greatly improved. It can be used in many applications. Such as in security systems, burglar alarms, visitor acknowledgement, light switch control and intellectualized toy, etc.

Parametrics

D204B general specifications: (1)Encapsulation Type:TO-5 ; (2)IR Receiving Electrode:2×1mm, 2 elements ; (3)Window Size:5×3mm ; (4)Spectral Response:5 to 14μm ; (5)Transmittance:≥75% ; (6)Output Signal[Vp-p]:≥3500mV ; (7)Sensitivity:≥3300V/W ; (8)Detectivity (D*): ≥1.4 ×108 cmHz1/2/W ; (9)Noise[Vp-p]:<70mV ; (10)Output Balance:<10% ; (11)Offset Voltage:0.3 to 1.2V ; (12)Supply Voltage:3 to 15V ; (13)Operating Temp:-30 to 70℃; (14)Storage Temp:-40 to 80℃.

Diagrams

D204B circuit diagram
