Product Summary

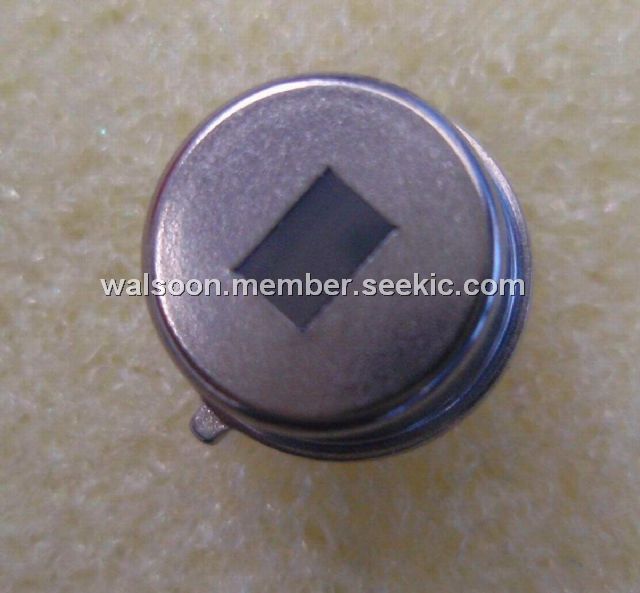

The D202X is a pyroelectric infrared sensor. It detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature. Dual compensated sensing elements are applied to suppress the interference resulting from temperature variation. As a result, the operating stability of the D202X is greatly improved. It can be used in many applications. Such as in security systems, burglar alarms, visitor acknowledgement, light switch control and intellectualized toy, etc.

Parametrics

D202X general specifications: (1)Recommended Model:D202X; (2)Encapsulation Type:TO-5; (3)IR Receiving Electrode:2×1mm, 2 elements; (4)Window Size:2*3mm; (5)Spectral Response:5 to 14μm; (6)Transmittance:≥75%; (7)Signal Output [Vp-p]:≥3500mV; (8)Sensitivity:≥3300V/W; (9)Detectivity (D*):≥1.4 ×108 cmHz 1/2/W; (10)Noise[Vp-p]:<70mV; (11)Output Balance:<10%; (12)Offset Voltage:0.3 to 1.2V; (13)Supply Voltage:3 to 15V; (14)Operating Temp.:-30 to 70℃; (15)Storage Temp.:-40 to 80℃.
