Product Summary
The 3362P-1-501LF is a Square Trimming Potentiometer.
Parametrics
3362P-1-501LF general specifications: (1)Standard Resistance Range:10 to 2 megohms; (2)Resistance Tolerance:±10 % std.(tighter tolerance available); (3)Absolute Minimum Resistance:1 % or 2 ohms(whichever is greater); (4)Contact Resistance Variation:1 % or 3 ohms max.(whichever is greater); (5)Adjustability: Voltage:±0.05 %, Resistance:±0.15 %, Resolution:Infinite; (6)Insulation Resistance:500 vdc. 1,000 megohms min.; (7)Dielectric Strength: Sea Level:900 vac, 80,000 Feet:350 vac; (8)Adjustment Angle:240 °nom.
Features
3362P-1-501LF features: (1)Single-Turn / Cermet / Industrial / Sealed; (2)Miniature package; (3)Rotor designed for automatic machine adjust interface; (4)Withstands harsh environments and immersion cleaning processes; (5)Available on tape and reel packaging ; (6)RoHS compliant version available.

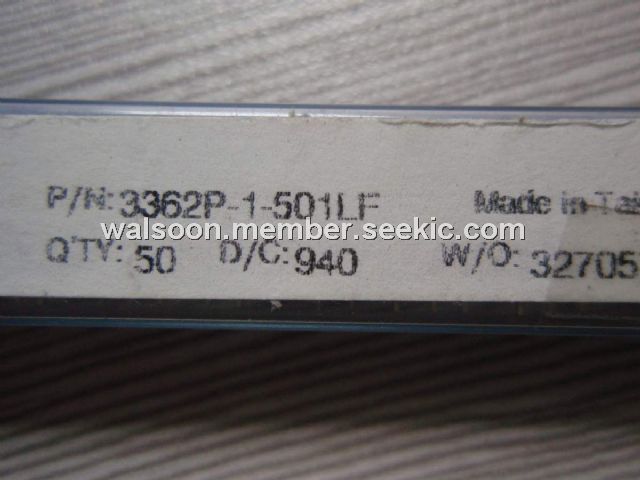

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() 3362P-1-501LF |
![]() Bourns |
![]() Trimmer Resistors - Through Hole 1/4"SQ 500OHMS 10% 0.5WATTS |
![]() Data Sheet |
![]()
|
|
||||||||||||
