Product Summary

The V24C12M50BL3 is a 24V input maxi family DC-DC converter module. The V24C12M50BL3 uses advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency ZCS/ZVS switching provides high power density with low noise and high efficiency.

Parametrics

V24C12M50BL3 absolute maximum ratings:(1)+In to –In voltage: -0.5 to +53 Vdc; (2)PC to –In voltage: -0.5 to +7.0 Vdc; (3)PR to –In voltage: -0.5 to +7.0 Vdc; (4)SC to -Out voltage: -0.5 to +1.5 Vdc; (5)-Sense to -Out voltage: 1.0 Vdc; (6)Isolation voltage of in to out: 3000 Vrms at Test voltage; (7)Isolation voltage of in to base: 1500 Vrms at Test voltage; (8)Isolation voltage of out to base: 500 Vrms at Test voltage; (9)Operating Temperature: -55 to +100 ℃ at M-Grade; (10)Storage Temperature: -65 to +125 ℃ at M-Grade; (11)Pin soldering temperature: 500 (260) °F (℃) at <5 sec; wave solder; (12)Pin soldering temperature: 750 (390) °F (℃) at <7 sec; hand solder; (13)Mounting torque: 5 (0.57) in-lbs (N-m).

Features

V24C12M50BL3 features: (1)RoHS Compliant (with F or G pin option); (2)DC input range: 18 - 36 V; (3)Input surge withstand: 50 V for 100 ms; (4)DC output: 3.3 to 48 V; (5)Programmable output: 10 to 110%; (6)Regulation: ±0.4% no load to full load; (7)Efficiency: Up to 89%; (8)Maximum operating temp: 100℃, full load; (9)Power density: up to 60 W per cubic inch; (10)Height above board: 0.43 in. (10,9 mm); (11)Parallelable, with N+M fault tolerance; (12)Low noise ZCS/ZVS architecture.

Diagrams

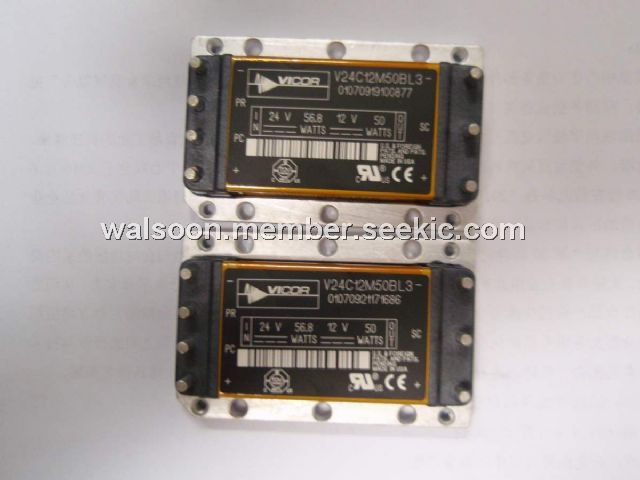

V24C12M50BL3 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
V24C12M50BL3
V24C12M50BL3


CONVERTER MOD DC/DC 12V 50W
