Product Summary
The 6N137 is a small outline high CMR, high speed, logic gate optocoupler. It is a single channel device in a five lead miniature footprint.
Parametrics
6N137 absolute maximum ratings: (1)Storage Temperature: -55℃ to +125℃; (2)Operating Temperature: -40℃ to +85℃; (3)Forward Input Current - IF: 20 mA; (4)Reverse Input Voltage - VR: 5 V; (5)Supply Voltage - VCC (1 Minute Maximum): 7 V; (6)Output Collector Current, IOStorage Temperature: -55℃ to +125℃; (7)Operating Temperature: -40℃ to +85℃; (8)Forward Input Current - IF: 20 mA; (9)Reverse Input Voltage - VR: 5 V; (10)Supply Voltage - VCC (1 Minute Maximum): 7 V; (11)Output Collector Current - IO: 50 mA; (12)Output Collector Power Dissipation: 85 mW; (13)Output Collector Voltage - VO: 7 V; (14)Output Collector Power Dissipation: 85 mW; (15)Output Collector Voltage - VO: 7 V.
Features
6N137 features: (1)Surface Mountable; (2)Very Small, Low Profile JEDEC Registered Package Outline; (3)Compatible with Infrared Vapor Phase Reflow and Wave Soldering Processes; (4)Internal Shield for High Common Mode Rejection (CMR); (5)High Speed: 10 Mbd; (6)LSTTL/TTL Compatible; (7)Low Input Current Capability: 5 mA; (8)Guaranteed ac and dc Performance over Temperature: -40 to 85℃; (9)Recognized under the Component Program of U.L.(File No. E55361) for Dielectric Withstand Proof Test Voltage of 2500 Vac, 1 Minute.

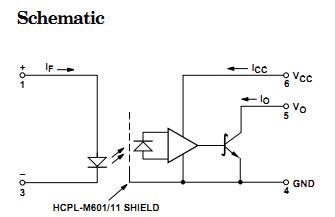

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() 6N137 |
![]() Fairchild Semiconductor |
![]() High Speed Optocouplers DIP-8 HS LOGIC GATE |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||||
![]() |
![]() 6N137#020 |
![]() Avago Technologies |
![]() High Speed Optocouplers 10 Mb/s 5000Vrms |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||||
![]() |
![]() 6N137#060 |
![]() Avago Technologies |
![]() High Speed Optocouplers 10 Mb/s 3750Vrms |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||||
![]() |
![]() 6N137#300 |
![]() Avago Technologies |
![]() High Speed Optocouplers 10 Mb/s 3750Vrms |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||||
![]() |
![]() 6N137#320 |
![]() Avago Technologies |
![]() High Speed Optocouplers 10 Mb/s 5000Vrms |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||||
![]() |
![]() 6N137#500 |
![]() Avago Technologies |
![]() High Speed Optocouplers 10 Mb/s 3750Vrms |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||||
![]() |
![]() 6N137#520 |
![]() Avago Technologies |
![]() High Speed Optocouplers 10 Mb/s 5000Vrms |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||||
![]() |
![]() 6N137(F) |
![]() |
![]() PHOTOCOUPLER HS TRANS-OUT 8DIP |
![]() Data Sheet |
![]()
|
|
